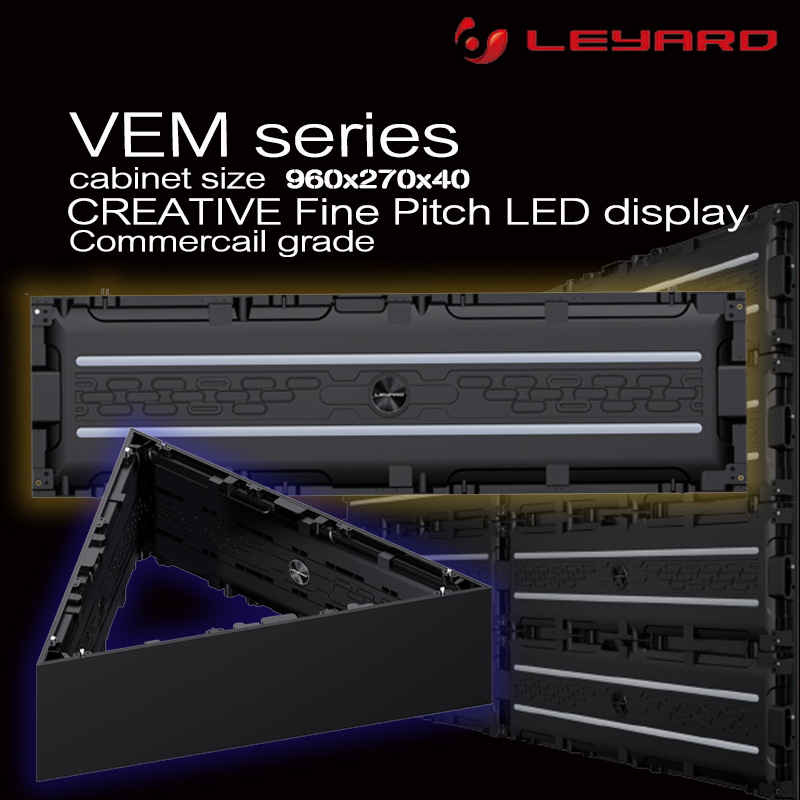

VEM SERIES FINE PITCH CREATIVE LED DISPLAY
VEM series has a wide coverage on the pixel pitch. The product has a creative cabinet structure design to meet the various challenging of retail market or creative applications.
Multiple Sizes to Meet More Needs

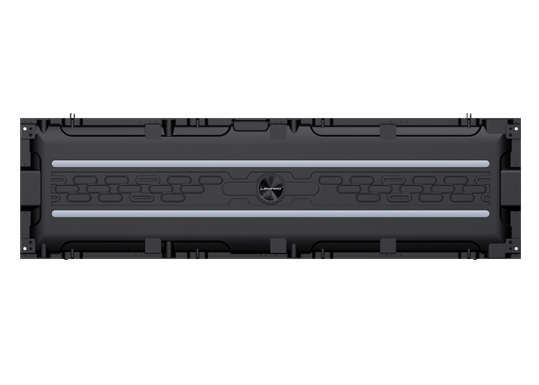

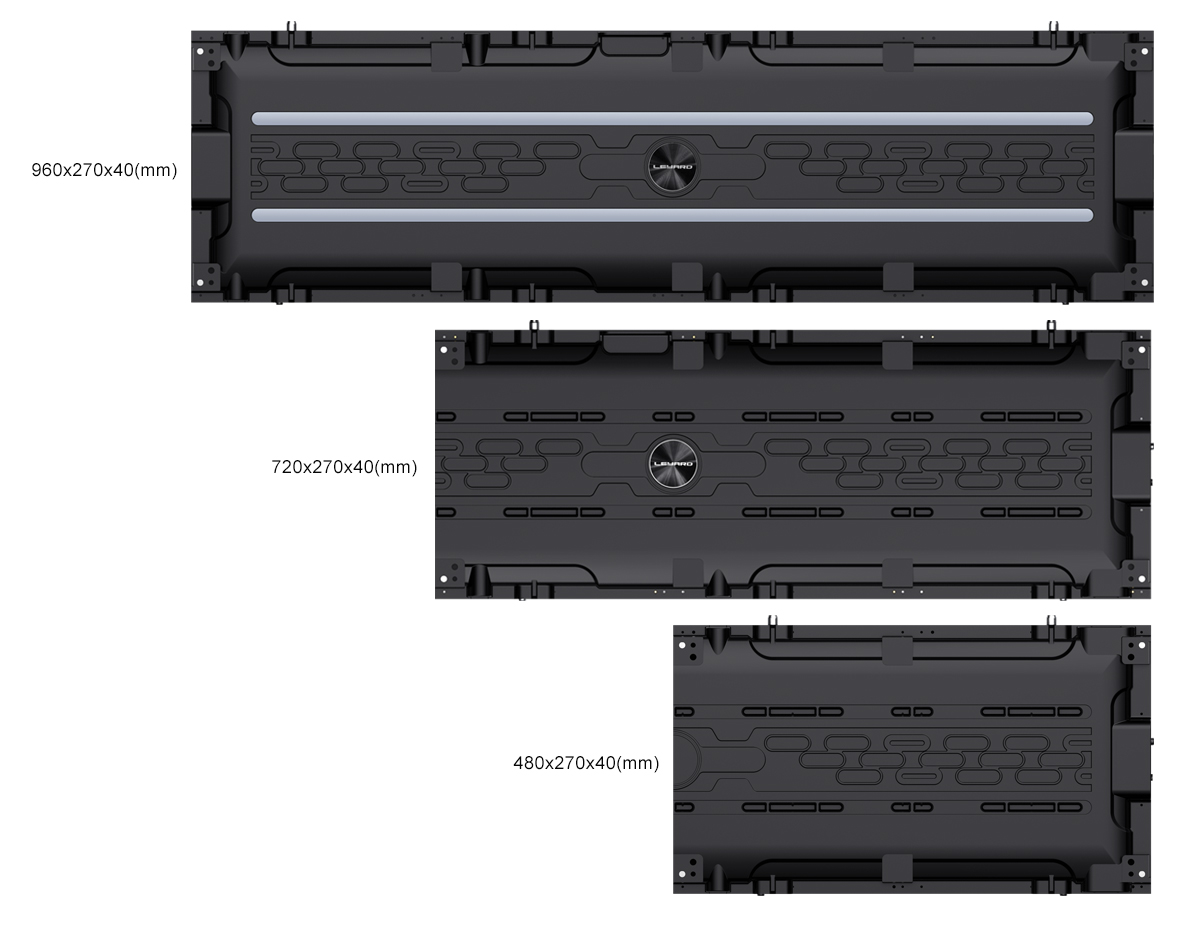

Standard width 960mm
Customized width 720/480mm
Flexible Stitching

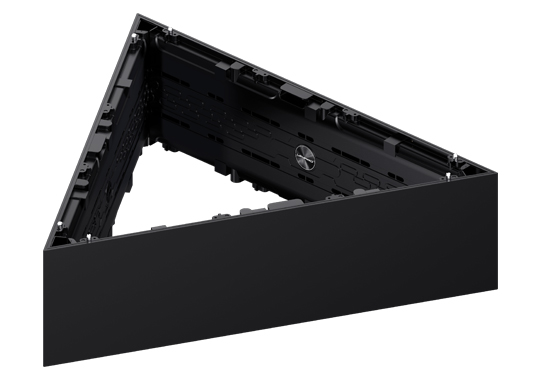

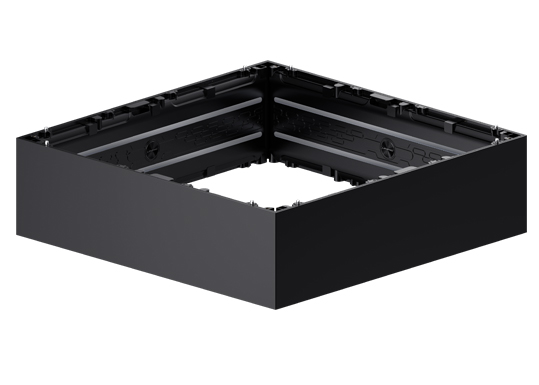

VEM’s cabinet structure is flexible, and the cabinet can be reprocessed and customized, stitched into three-sided or four-sided shapes, suitable for retail, external obituary, creative display and other applications.

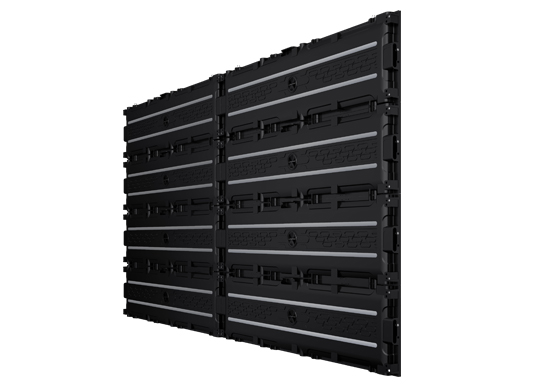

X/Y/Z 6-axis Alignment
Special 6-axis alignment features ensure the video wall is perfectly aligned and seamless.
Convenient Power Cable Connection
Power cables can be connected from the top or side.

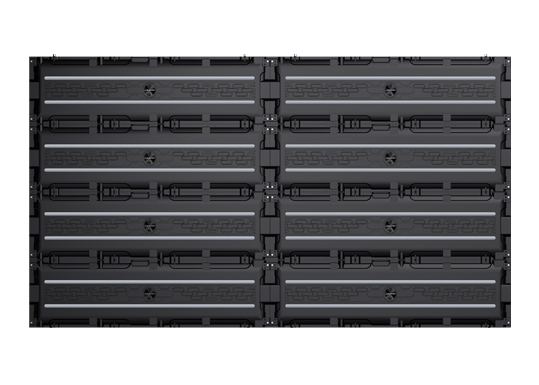

Perfect 16: 9 Stitching
VEM’s standard cabinet has an aspect ratio of 32: 9, and two cabinets are stacked to achieve the aspect ratio of 16: 9, which is
suitable for playing all kinds of highdefinition videos.
Intelligent Module
The module adopts digital signature technology, and the calibration data can be stored in the module independently, which is
convenient for maintenance.
Easy Front Installation and Maintenance
VEM has a fully front-access design. When front installation, you only need to remove the two modules on the edge to make
wiring very convenient.
Compact at Back
The signal and power connections between the cabinets are hidden, ensuring a compact and decent rear of the entire screen.
PRODUCT SPECIFICATION
| Item | VEM009 | VEM010 | VEM012 | VEM014 | VEM015 | VEM018 | VEM020 | VEM025 | VEM030 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Pitch (mm) | 0.968 | 1.0 | 1.25 | 1.46 | 1.579 | 1.875 | 2.0 | 2.5 | 3.0 |
| Module Resolution (WxH) | 248×279 | 240×270 | 192×216 | 164×184 | 152×171 | 128×144 | 120×135 | 96×108 | 80×90 |
| Module Size (mm) (WxHxD) | 240x270x13 | 240x270x13 | 240x270x13 | 240x270x13 | 240x270x13 | 240x270x13 | 240x270x13 | 240x270x13 | 240x270x13 |
| Module Weight (Kg) | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 |
| Module Composition (WxH) | 4×1 | 4×1 | 4×1 | 4×1 | 4×1 | 4×1 | 4×1 | 4×1 | 4×1 |
| Cabinet Resolution | 992×279 | 960×270 | 768×216 | 656×184 | 608×171 | 512×144 | 480×135 | 384×108 | 320×90 |
| Cabinet Dimension (WxHxD, mm) | 960x270x40 | ||||||||
| Unit Area (㎡) | 0.2592 | 0.2592 | 0.2592 | 0.2592 | 0.2592 | 0.2592 | 0.2592 | 0.2592 | 0.2592 |
| Cabinet Weight (Kg/㎡) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Pixel Density (pixel/㎡) | 1067208 | 1000000 | 640000 | 465679 | 401111 | 284444 | 250000 | 160000 | 111111 |
| Surface Flatness (mm) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Brightness Calibration | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Color Calibration | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Brightness (nits) (after calibration) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Color Temperature (K) | 3000-10000 Adjustable | ||||||||
| Horizontal Viewing Angle (°) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Vertical Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Deviation of LED Luminance Center (after calibration) | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% |
| Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Chromaticity Uniformity (after correction) | ±0.003Cx,Cy within | ||||||||
| Contrast Ratio | 7000:1 | 7000:1 | 7000:1 | 7000:1 | 7000:1 | 7000:1 | 7000:1 | 7000:1 | 7000:1 |
| Max Power Consumption (W/㎡) | 550 | 550 | 550 | 550 | 550 | 550 | 550 | 550 | 550 |
| Average Power Consumption (W/㎡) | 230 | 225 | 220 | 210 | 210 | 200 | 200 | 200 | 200 |
| Power Supply | AC200 ~ 240V (50Hz) | ||||||||
| Drive Mode | Constant current drive | ||||||||
| Frame Rate (Hz) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Lifetime (hrs) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Operation Temperature (℃) | -20 ~ 40 | -20 ~ 40 | -20 ~ 40 | -20 ~ 40 | -20 ~ 40 | -20 ~ 40 | -20 ~ 40 | -20 ~ 40 | -20 ~ 40 |
| Storage Temperature (℃) | -30 ~ 60 | -30 ~ 60 | -30 ~ 60 | -30 ~ 60 | -30 ~ 60 | -30 ~ 60 | -30 ~ 60 | -30 ~ 60 | -30 ~ 60 |
| Operation Humidity (RH) | 10–80% no condensation | ||||||||
| Storage Humidity (RH) | 10–85% no condensation | ||||||||
