NCV Outdoor Series

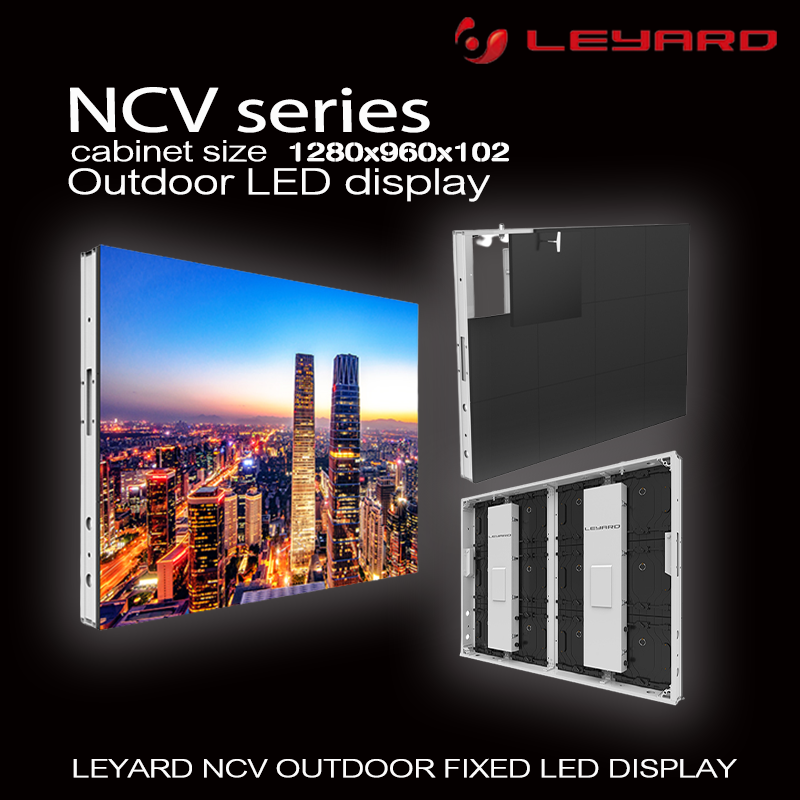

NCV Fixed Outdoor LED Display
NCV series is the latest generation of outdoor fixed cabinet. The advanced design creates an ultra-light, ultra-thin outdoor cabinet structure that provides front/rear maintenance, high brightness, wide viewing angle and IP65 protection.
Brightness can fully meet the needs of outdoor display, standard 6000 nits and high brightness 8000 nits optional
All-aluminum cabinet, efficient heat dissipation
Less than 30kg/㎡ allows in shipping cost and installation cost

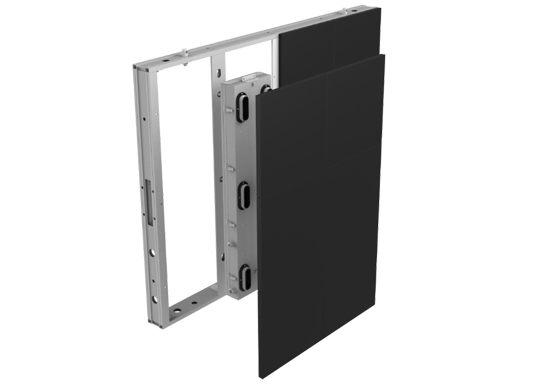

Modular Design, commonly waterproof module, module power box can be replaced independently, cabinet IP65 front & rear

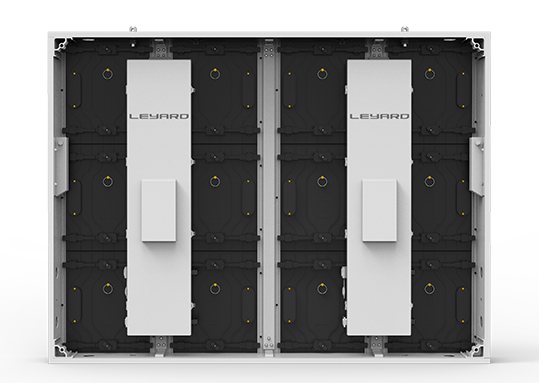

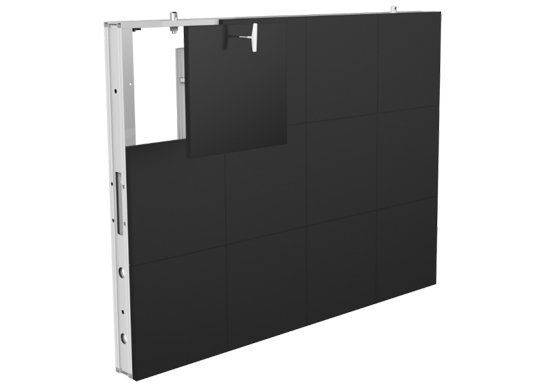

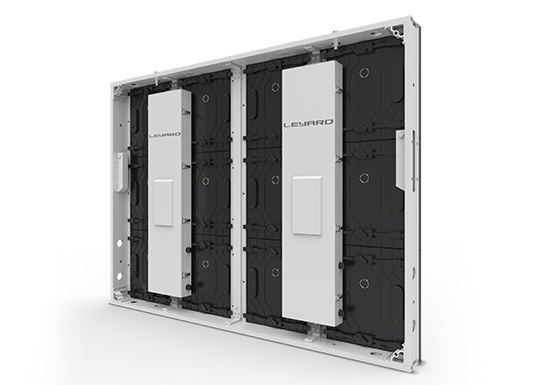

Versatile outdoor LED display, front and rear maintenance
CE, CB, FCC, cTUVus passed
PRODUCT SPECIFICATION
| Item | NCV04S | NCV05S | NCV06S | NCV06S-HB | NCV08S | NCV08S-HB | NCV10S | NCV10S-HB |
| LED configuration | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Physical pixel pitch (mm) | 4 | 5 | 6.67 | 6.67 | 8 | 8 | 10 | 10 |
| Module resolution (WxH） | 80×80 | 64×64 | 48×48 | 48×48 | 40×40 | 40×40 | 32×32 | 32×32 |
| Module dimension (WxH, mm) | 320×320 | |||||||
| Module composition (WxH） | 4×3 | |||||||
| Cabinet resolution (WxH） | 320×240 | 256×192 | 192×144 | 192×144 | 160×120 | 160×120 | 128×96 | 128×96 |
| Cabinet dimension (WxHxD, mm) | 1280x960x102 (Optional: 1280X640/960X960/960X640/640×960/640×640) | |||||||
| Cabinet area (㎡) | 1.2288 | |||||||
| Weight (kg/cabinet；kg/㎡) | 36; 29 | |||||||
| Pixel density (Point/㎡) | 62500 | 40000 | 22500 | 22500 | 15625 | 15625 | 10000 | 10000 |
| IP Level | IP65 Front / Rear | |||||||
| Brightness (nits) | 5500 | 6000 | 6000 | 8000 | 6000 | 8000 | 6000 | 8000 |
| Color temperature (K) | 3000—10000 | |||||||
| Viewing angle (horiz ; vert) ° | 150; 110 | |||||||
| Central distance deviation of lumines- cence point | <3% | |||||||
| Contrast ratio | 6000:1 | 6000:1 | 6000:1 | 8000:1 | 6000:1 | 8000:1 | 6000:1 | 8000:1 |
| Power consumption (max; avg)W/㎡ | 700; 215 | 650; 215 | 610; 200 | 610; 200 | 610; 200 | 610; 200 | 610; 200 | 610; 200 |
| Input voltage (V) | AC100~240V (50-60Hz) | |||||||
| Maintenance | Front / Rear Access | |||||||
| Refresh rate @60Hz | ≥3840 | |||||||
| Frame rate Processing (Hz) | 50&60 | |||||||
| Operating temperature (℃) | -30~50 | |||||||
| Storage temperature (℃) | -40~60 | |||||||
| Operating humidity (RH) | 10~90% | |||||||
| Storage humidity (RH) | 10~80% | |||||||
