Description
CV Outdoor Series

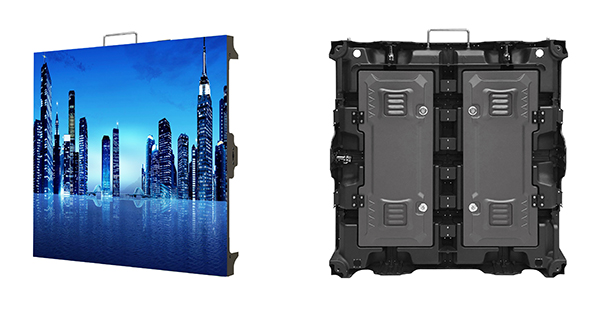

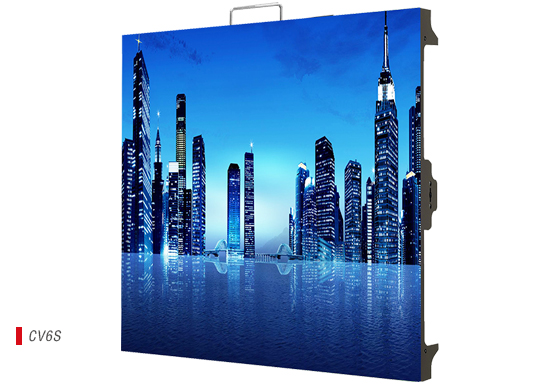

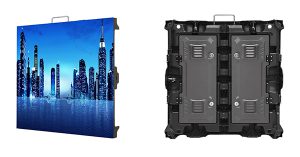

CV Fixed Outdoor LED Display
FAST AND EASY MAINTENANCE
Adopt self-locking and fast installation mechanism; fast and easy maintenance.
AUTOMATIC ALIGNMENT MECHANISM

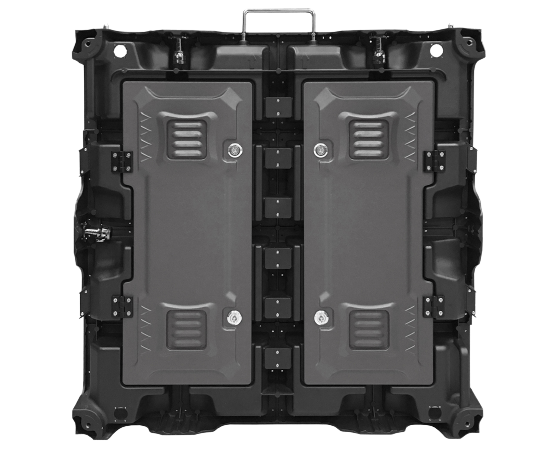

Integrated and die-casting cabinet, solid and reliable. The cabinet is equipped with fast assembly connection which can make screen disassembled fastly. Meanwhile, it is designed with automatic alignment mechanism which can realize fast installation by single person.
THIN AND LIGHTWEIGHT
＜ 40Kg/ ㎡ allows in shipping cost and installation cost.
LEYARD CV OUTDOOR SERIES
Integrated and die-casting cabinet, solid and reliable. The cabinet is equipped with fast assembly connection which can make screen disassembled fastly. Meanwhile, it is designed with automatic alignment mechanism which can realize fast installation by single person.
PRODUCT SPECIFICATION
| Item | CV4S | CV5S | CV6S | CV8S | CV10S |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD |
| Pitch(mm) | 4 | 5 | 6 | 8 | 10 |
| Module Resolution(WxH) | 64×32 | 64×32 | 32×32 | 32×16 | 32×16 |
| Module Size(mm)(WxHxD) | 256x128x18 | 320x160x18 | 192x192x18 | 256x128x18 | 320x160x18 |
| Module Weight(Kg) | 0.32 | 0.5 | 0.32 | 0.28 | 0.44 |
| Module Composition(WxH) | 2×4 | 3×6 | 4×4 | 4×6 | 3×6 |
| Cabinet Resolution(WxH) | 128×128 | 192×192 | 128×128 | 128×96 | 96×96 |
| Cabinet Size(mm)(WxHxD) | 512x512x100 | 960x960x100 | 768x768x100 | 1024x768x100 | 960x960x100 |
| Unit Area( ㎡ ) | 0.2621 | 0.9216 | 0.5898 | 0.7864 | 0.92 |
| Cabinet Weight(kg/㎡ ) | 40 | 40 | 40 | 40 | 40 |
| Pixel Density(pixel/㎡ ) | 62500 | 40000 | 27778 | 15625 | 10000 |
| Surface Flatness(mm) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| IP Grade(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Brightness(nits) (after calibration) | 5000-6000 | 5000-6000 | 5000-6000 | 5000-6000 | 5000-6000 |
| Color Temperature(K) | 3000-10000 Adjustable | ||||
| Horizontal Viewing Angle(° ) | 160 | 160 | 160 | 160 | 160 |
| Vertical Viewing Angle(° ) | 140 | 140 | 140 | 140 | 140 |
| Deviation of LED Luminance Center (after calibration) | ≤3% | ≤3% | ≤3% | ≤3% | ≤3% |
| Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Chromaticity Uniformity (after calibration) | ±0.003Cx,Cy within | ||||
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Max Power Consumption (W/㎡) | 850 | 750 | 800 | 900 | 800 |
| Average Power Consumption (W/㎡) | 283 | 250 | 267 | 300 | 265 |
| Power Supply | AC100~240V (50/60Hz) | ||||
| Drive Mode | Constant Current Drive | ||||
| Frame Rate(Hz) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
| Refresh Rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Lifetime(hrs) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Operation Temperature(℃ ) | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 |
| Storage Temperature(℃ ) | -30~60 | -30~60 | -30~60 | -30~60 | -30~60 |
| Operation Humidity(RH) | 10~80% no condensation | ||||
| Storage Humidity(RH) | 10~85% no condensation | ||||
