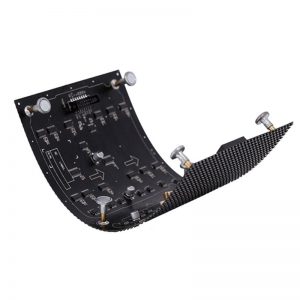

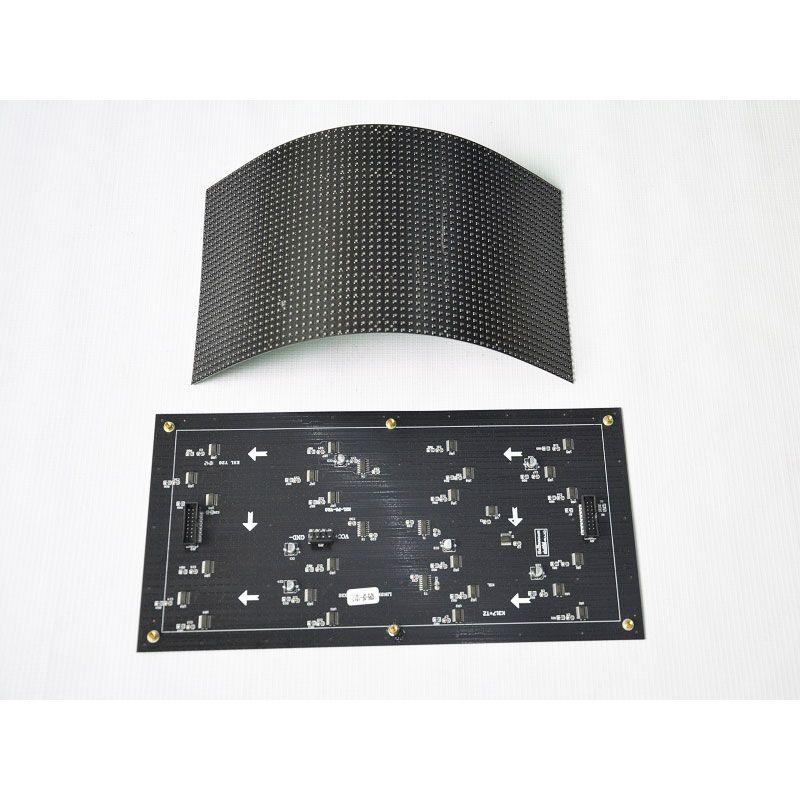

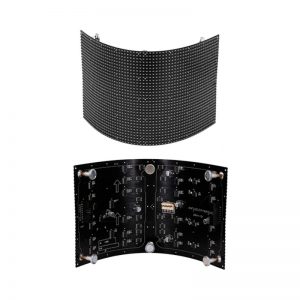

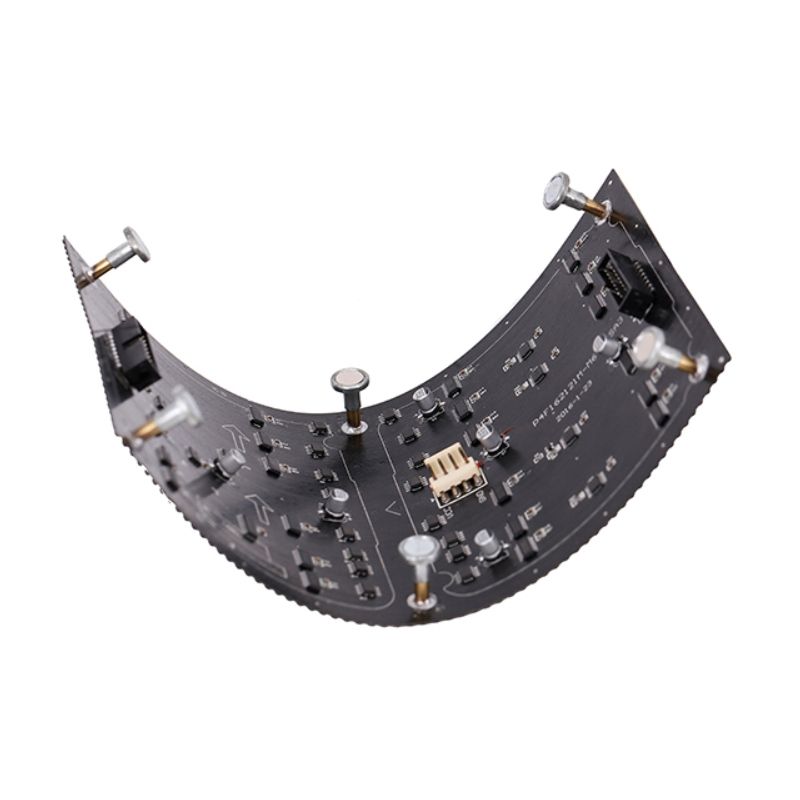

P5 Indoor Flexible LED Display Module 64×32 Dots
With MBI5124 Driving IC, High Refresh Rate and Best Color Uniformity.
P5mm Super Flexible soft led display Panel Features:
1: soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won’t break LEDs as well design of mask covers.
2.Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.
3.Assembling screen with soft led modules directly,saving time and effort,easy operation.
4.Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
5.No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
6.Strict quality control and long-term application experience verified the stablity and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.
7.Widely applied in shaped stage background/exhibition/shopping mall etc.
Pixel pitch | 5mm |
Module Size | 320X160 mm |
Model Pixel | 64X32 Pixels |
Lattice density | 40000 dots/square meter |
Pixel form | 1R1G1B SMD2121 |
Max power consumption | 750W/square meter |
Ave power consumption | 320W/square meter |
Drive mode( Optional) | Constant current 1/16scan |
Control system | DVI card+Full color control card |
Pixel type | Real pixel |
refresh frequency | >=1920HZ |
Horizontal View Angel | > 160 degree |
Gray scale | 16 bit |
Color display | manual adjust |
Brightness | >= 1000 cd/square meter |
Blind spot rate | <0.00001 |
Waterproof Class | IP43 |
Software | Support window series system |
Working Environment | Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90% |
Working voltage | DC 5V |
Lifetime | >=100000 hours |
Warranty | 2 Years |
Certification | CCC,CE,RoHs,ETL |
